Product Details
＋
Takahashi Tube ring 156S

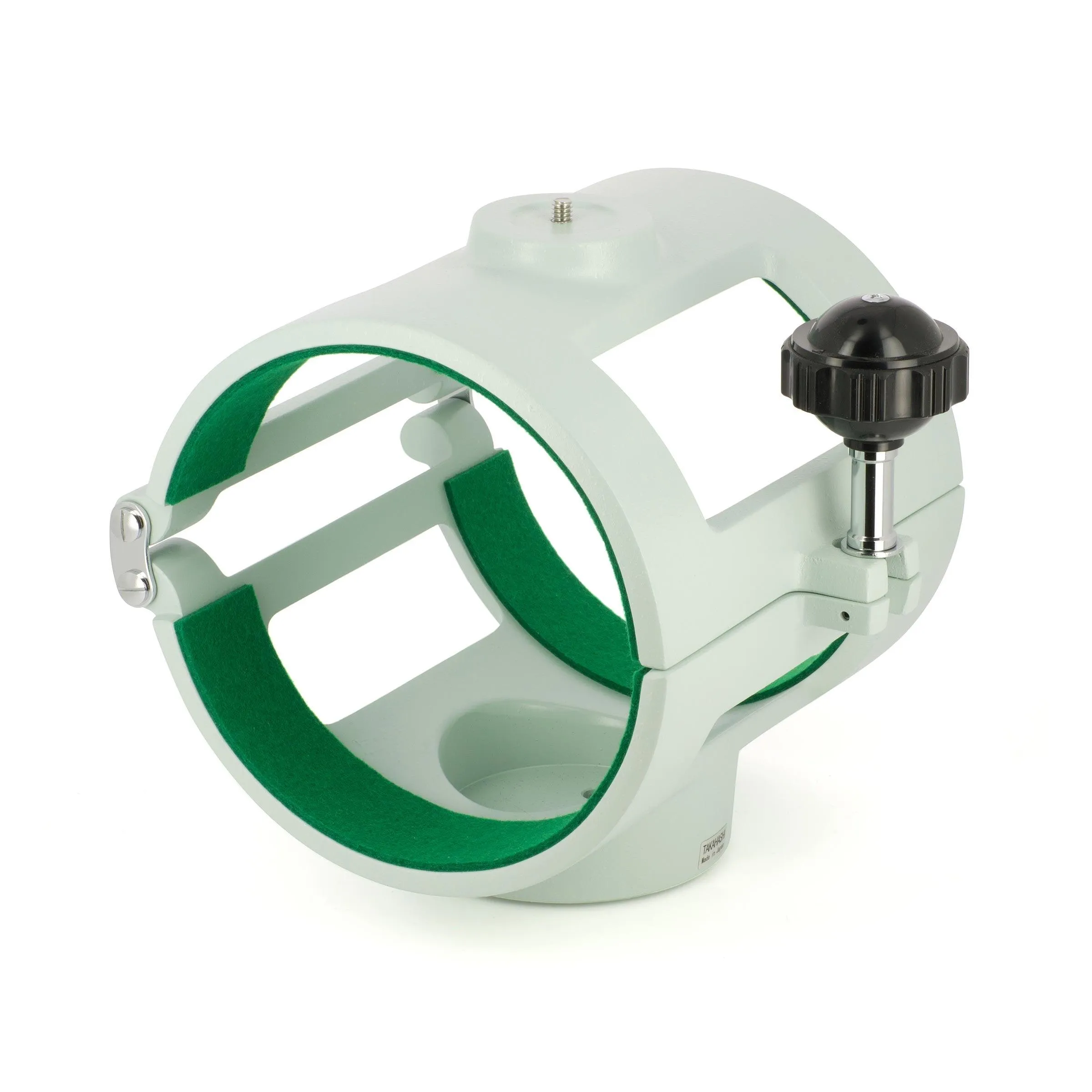

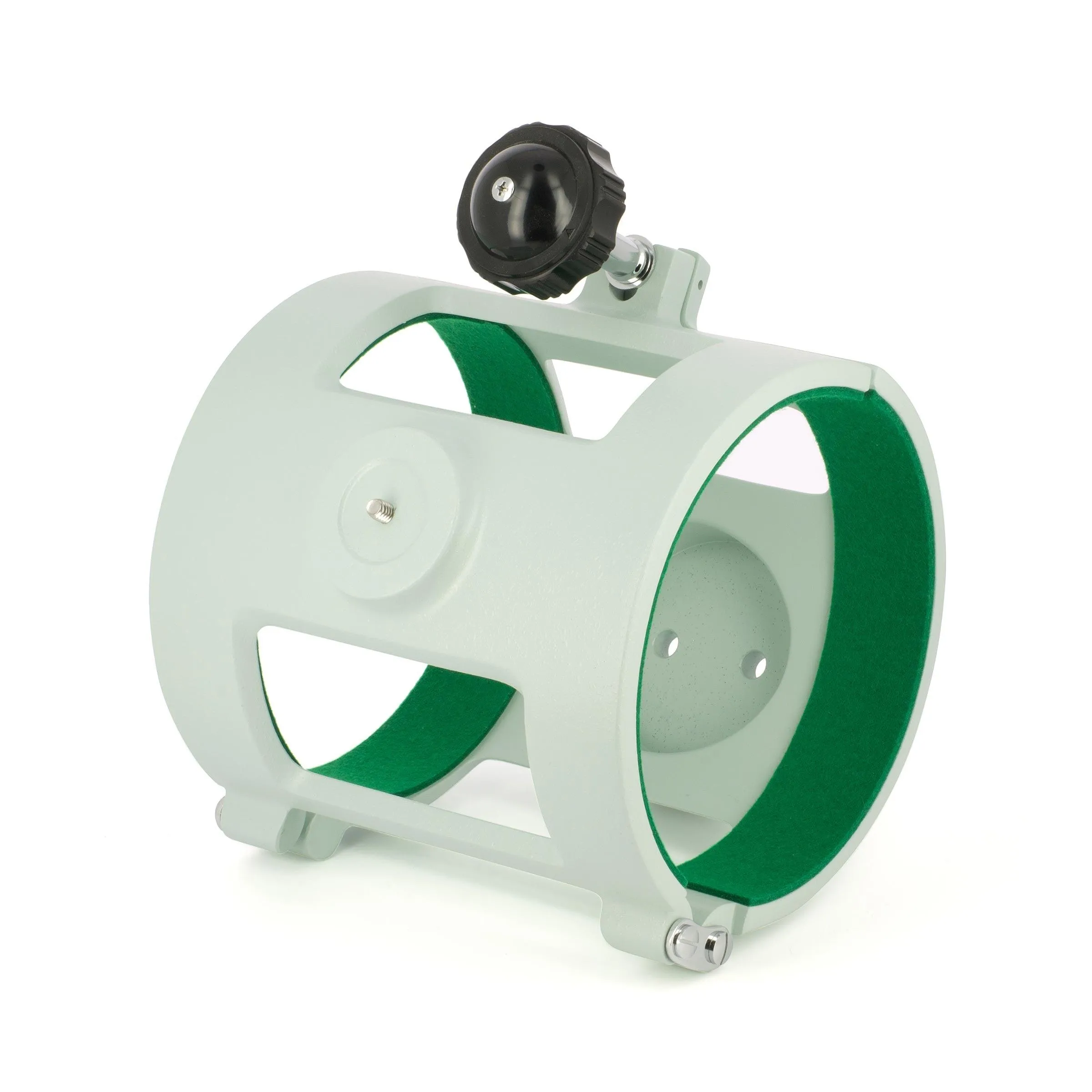

Cradles are the standard tube rings for fixing Takahashi optical tube assemblies to the mounts. Footprints of the cradles are adapted to the heads of the Takahashi mounts. They are systematically provided with two 8.8 mm diameter holes; they are fixed to the Takahashi mounts by means of 2 M8 screws, delivered with cradles. The top of the cradle has a small flat surface with a 1/4"-20tpi screw (Kodak). It is possible to attach a camera to it in parallel.
Takahashi cradles are made of cast aluminium. The finishing of each one is done manually. Felt parts ensure the protection of the optical tube.
Technical Specifications
Takahashi 156S cradle (TOA-130)
| CHARACTERISTICS | TAKAHASHI 156S CRADLE |
| Item number | TKA31420 |
| Name | 156S |
| Internal Diameter | 156 mm |
| Weight | 2 kg |
| Compatibility | Takahashi TOA-130 refractor |
Footprints of top plate and rings of the Takahashi 156S cradle (TOA-130)
In the Box
Takahashi Tube ring 156S
