·Product Description

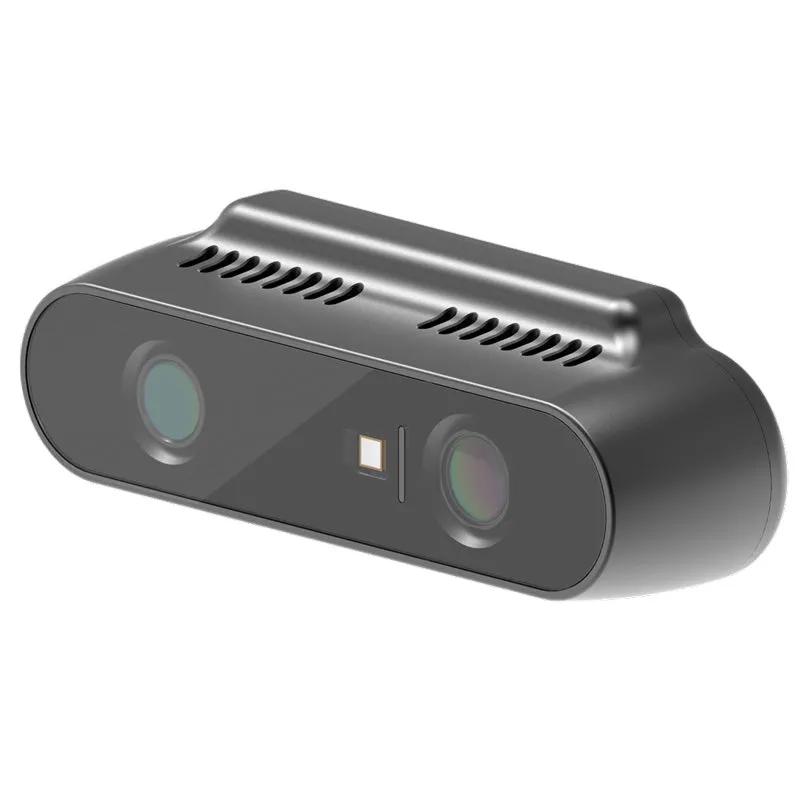

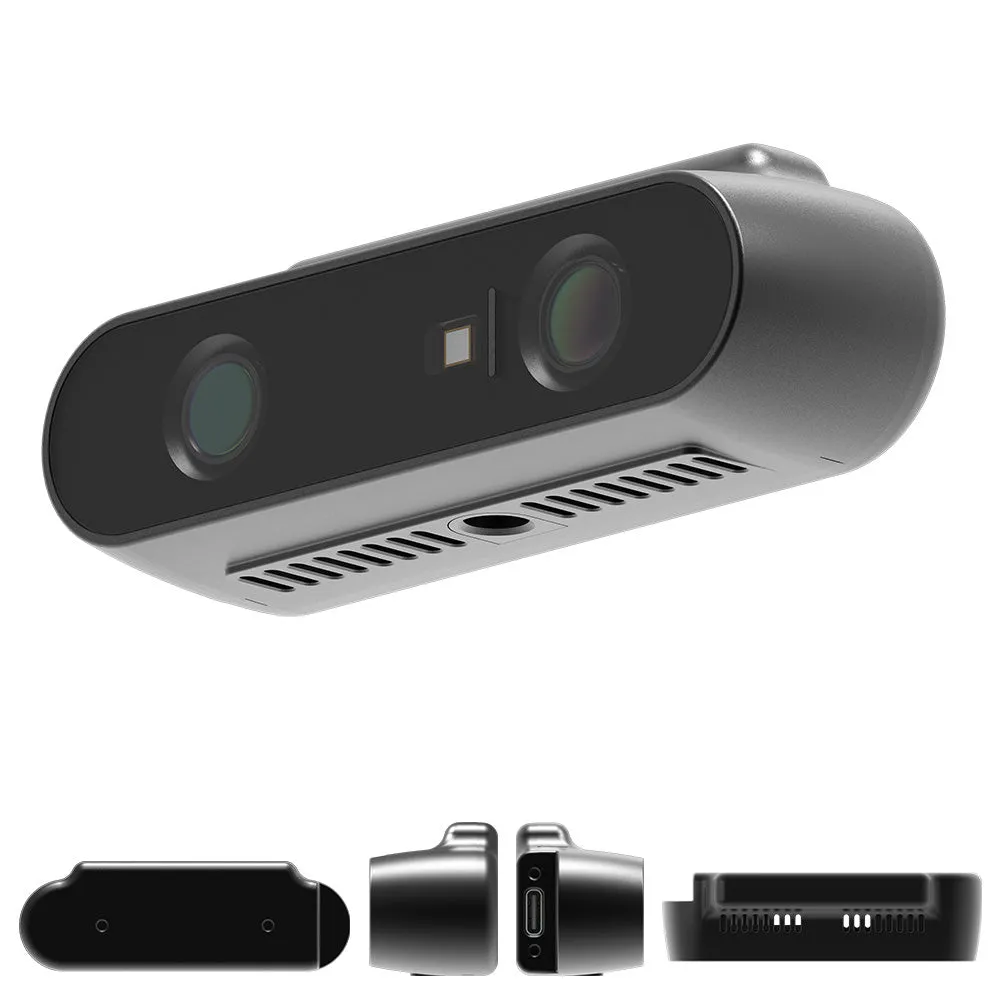

The RGBD Depth Camera_CS30 is equipped with a 640 x 480 ToF depth camera and a 1920 x 1080 color 3D sensor, leveraging Time-of-Flight (ToF) technology to capture precise 3D information of objects and spaces. With a large Field of View (FOV) and synchronized depth and color imaging, the CS30 offers high-performance 3D perception for advanced applications.

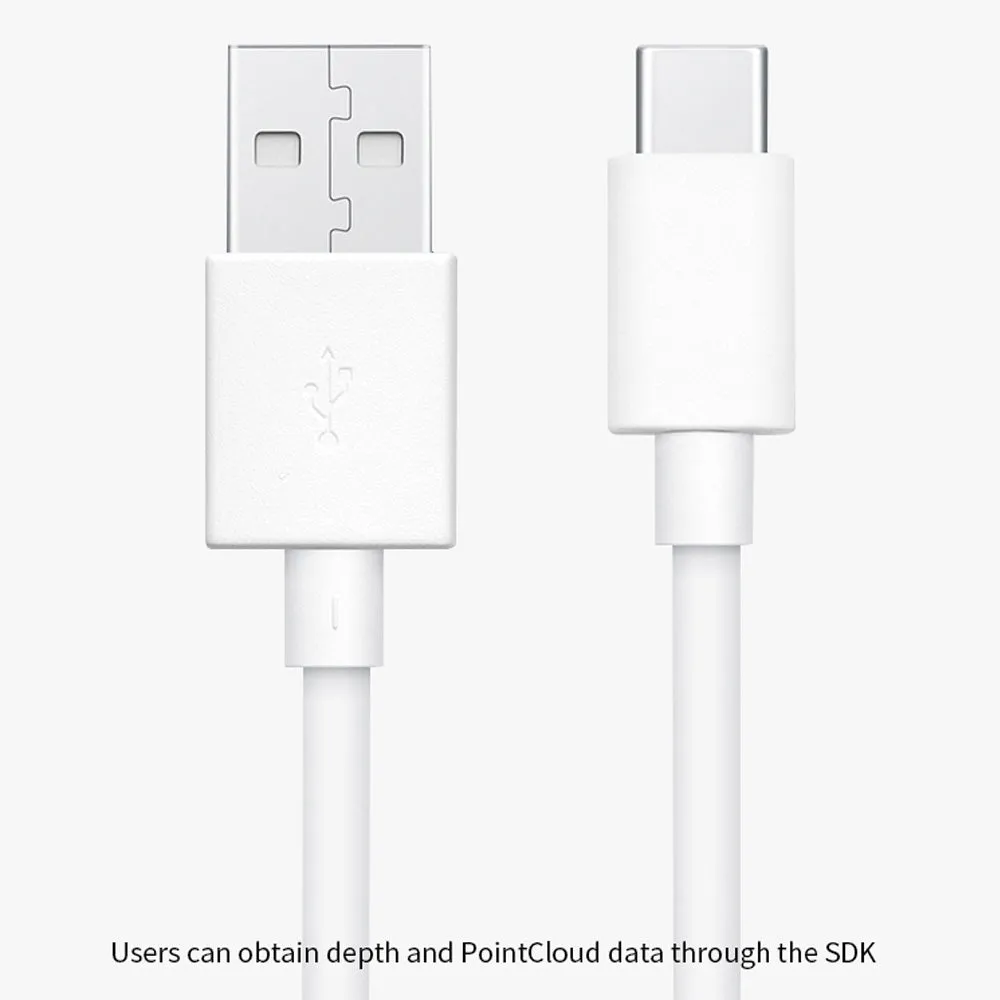

Powered by a Type-C interface, the CS30 provides simultaneous depth and color image output, supporting seamless image mapping and 3D model recognition. Currently, the CS30 can identify up to 80 different models with integrated AI-based recognition technology, offering efficient, real-time object and environment perception.

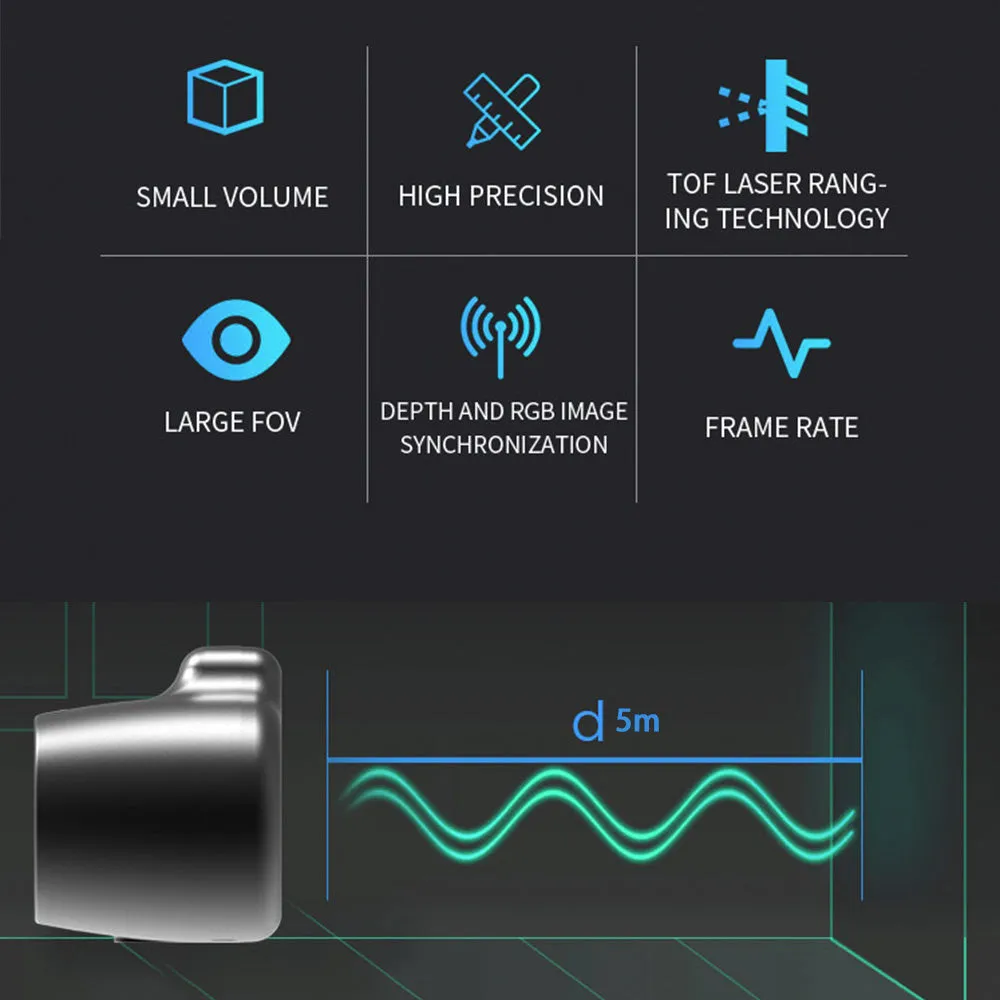

 ·Product Features

• High precision
• Typical measurement range: 0.1-5m@90% reflectance
• High dynamic measurement range
• Supports depth, color image synchronization
• Adjustable range and frame rate

•Applicable Scenarios

• IRobotic obstacle avoidance
• Industrial Vision
• Volume measurement
• Liveness detection
• Somatosensory interaction
• 3D modeling
• Security monitor

•GUI Effect and Absolute Precision

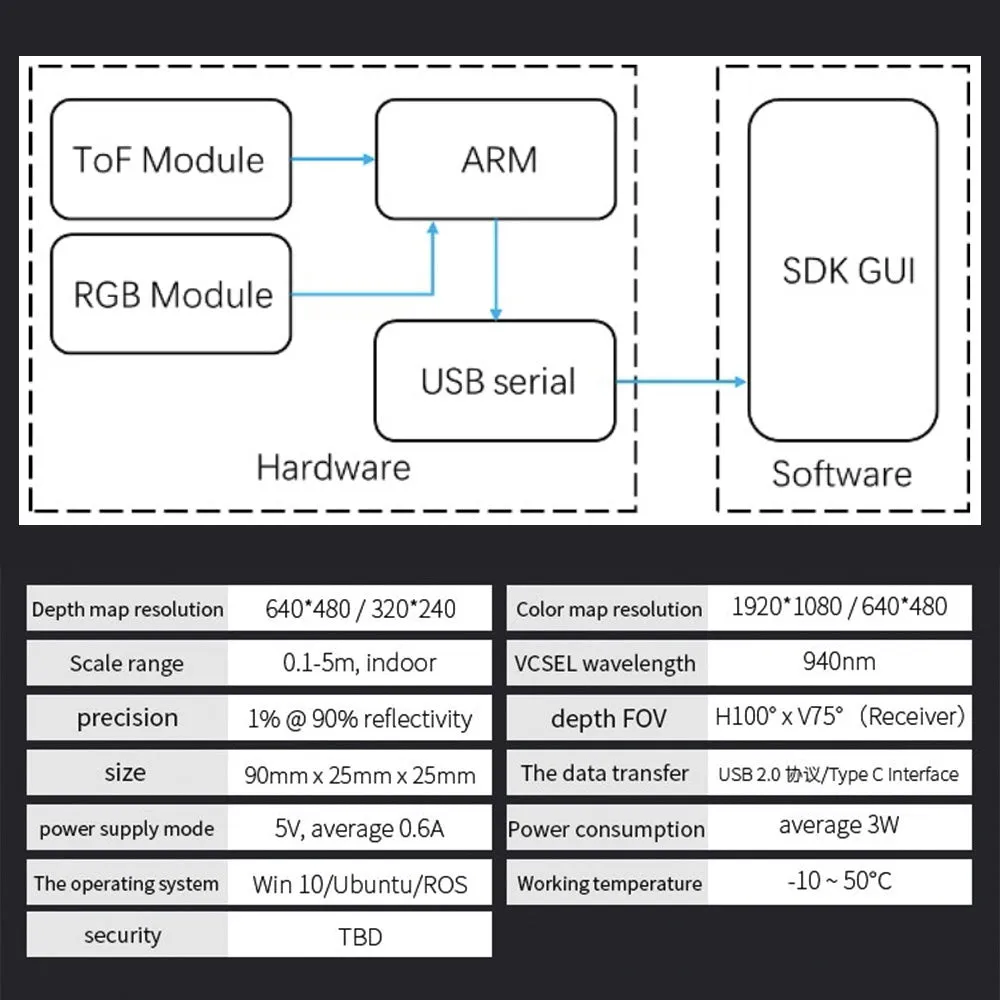

 · Technical Parameter

· Precautions

• Do not heat this product with other heat sources;
• Do not scratch the lens to prevent the measurement accuracy from decreasing;
• Do not drop, hit or disassemble this product to prevent damage to internal components and loss of accuracy.
