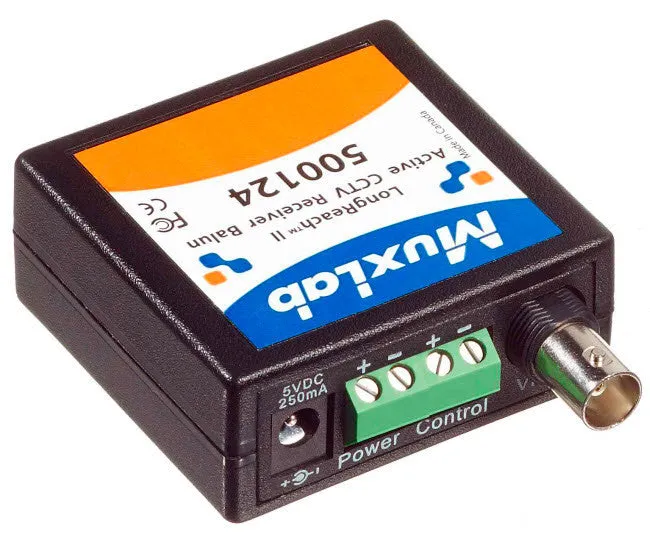

The LongReach II Active CCTV Receiver Balun (500124) provides extended distance between the CCTV camera and the DVR via Cat5e/6 cable. The product features Auto Gain Control (AGC), Auto-Polarity Correction and supports up to 5,000Ft (1.5 km) via Cat5e/6 cable when used in conjunction with MuxLab.
Applications
Campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, selfstorage, hospitals, car dealerships.

Features:

• Up to 5,000 feet (1.5 km) via Cat5e/6
• Up to 7,000 feet (2.1 km) via Cat5e/6 with
• 500100/101 at camera
• Video, power and PTZ over one Cat5e/6
• Auto Gain Control (AGC)
• Auto Polarity Correction
• Ground Loop Isolation (GLI)
• LED diagnostics
• Supports MuxLab mounting accessories
• (500900/902/910/915)

Specifications:

• Compatible Baluns 500000, 500000R, 500009, 500022, 500024, 500029, 500100/101
• Environment CCTV composite baseband video; NTSC, PAL, SECAM
• Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV
• equip.
• Transmission Transparent to the user
• Bandwidth 20 Hz to 8 MHz.
• Input 1.5 Vp-p max, 100U, balanced (RJ45)
• Output 1.1 Vp-p, ± 1 dB, 75U, unbalanced (BNC)
• Insertion Loss -14 dB minimum for luma, -60 dB minimum for chroma.
• Determined by Automatic Gain Control.
• Return Loss Greater than 15 dB over the frequency range
• Common Mode Rejection Greater than 40 dB @ 3.85 MHz
• Ground Loop Isolation Up to /-50VDC
• Auto Polarity Correction Automatically adjusts for any polarity
• Max. Distance via Cat5e/6 NTSC: 5,000Ft (1.5 km) with passive CCTV balun at camera
• NTSC: 7,000Ft (2.1 km) with 500100/101 at camera
• *Coax jumper cables must be less than 30Ft (9m)
• LED Diagnostics Power, Video Sync
• Auto Gain Control (AGC) Automatically adjusts for gain, sharpness and luminosity.
• Stabilization time: under 1 second
• Wiring Remote low voltage power supported via two (2) or three (3) twisted pairs. A
• Class II power supply is recommended.
• Max. Distance @ 24VAC via three twisted pairs*. *Longer distances may be achieved @ 28 VAC.
• 2 VA: 1,500Ft (457m)* 4 VA: 745Ft (227m)*
• 10 VA: 300Ft (91m)* 20 VA: 150Ft (46m)*
• *Based on 10% voltage drop at camera. Please consult your CCTV vendor for more info.
• Max. Current 2.5A rms or DC.

Item Includes:

• Power Supply

Warranty:

• 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products
