Product Details
＋

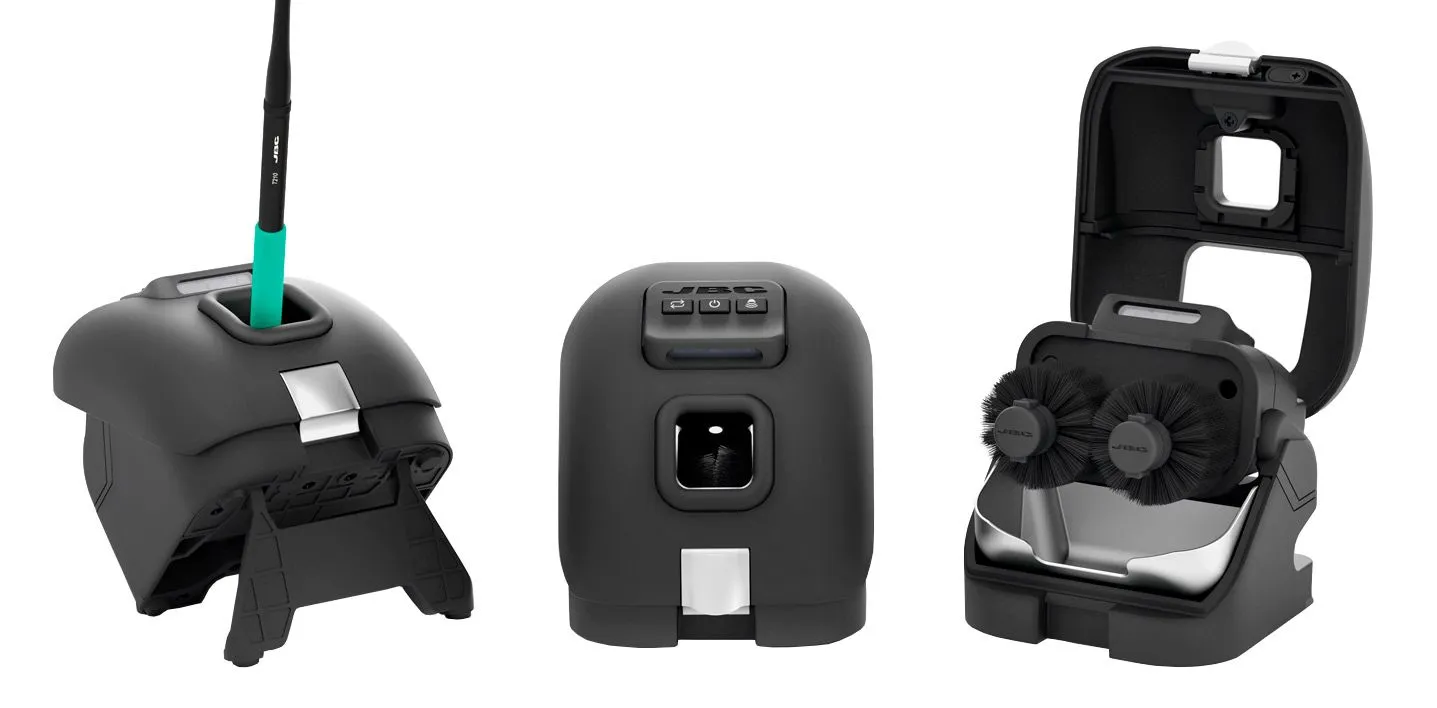

- Less than 1 second to perform a through and gentle tip cleaning with CLMU, increasing heat transfer to maximize soldering quality.
- It features Sensor and Continuous working modes and can be used in horizontal or vertical position.
- Designed for an easy maintenance with direct removable tray and quick and easy brush replacement.
- Helps to keep the work area free of Foreign Object Debris (FOD).
- It is supplied with CLUP2 Non-Metal Brushes, these brushes came fiber bristles and black core for a high melting point. Fiber bristles ensure gentle cartridge cleaning.
- CLU allows the detection distance to be configured up to 3 levels
Product Includes
- (1) CLUP Senior Tip Cleaner with Non-Metal Brushes
- (2) CLUP2 Non-metal Brushes HMP for CLU & CLR
Specifications
- Operating Modes: Sensor and continuous
- Brush Diameter: ø50 mm (1.97 in)
- Brush Speed: 750 rpm
- Silent Operation: 25 dB at 30 cm
- Operating Temp. Range: 10 to 40°C / 50 to 104°F
Special Features
- Tray: Direct remove / High solder residue capacity
- Positions: Horizontal and vertical
Connectivity
- Equipotential Bonding: ESD/EOS
- ESD-Safe: Yes
- USB-B: PC / Firmware update
- AC Adapter Input: 100-240 V, 50/60 Hz
- AC Adapter Output: DC 24 V, 2 A
Weight & Dimensions
- Cleaning unit Weight: 2.1 Kg / 4.63 lb.
- Cleaning unit Dimensions: 128 x 131 x 137 mm / 5.0 x 5.2 x 5.4 in
- Package Weight: 2.6 Kg / 5.73 lb.
- Package Dimensions: 213 X 220 X 160 mm / 8.4 x 8.7 x 6.3 in
