Product Details
＋

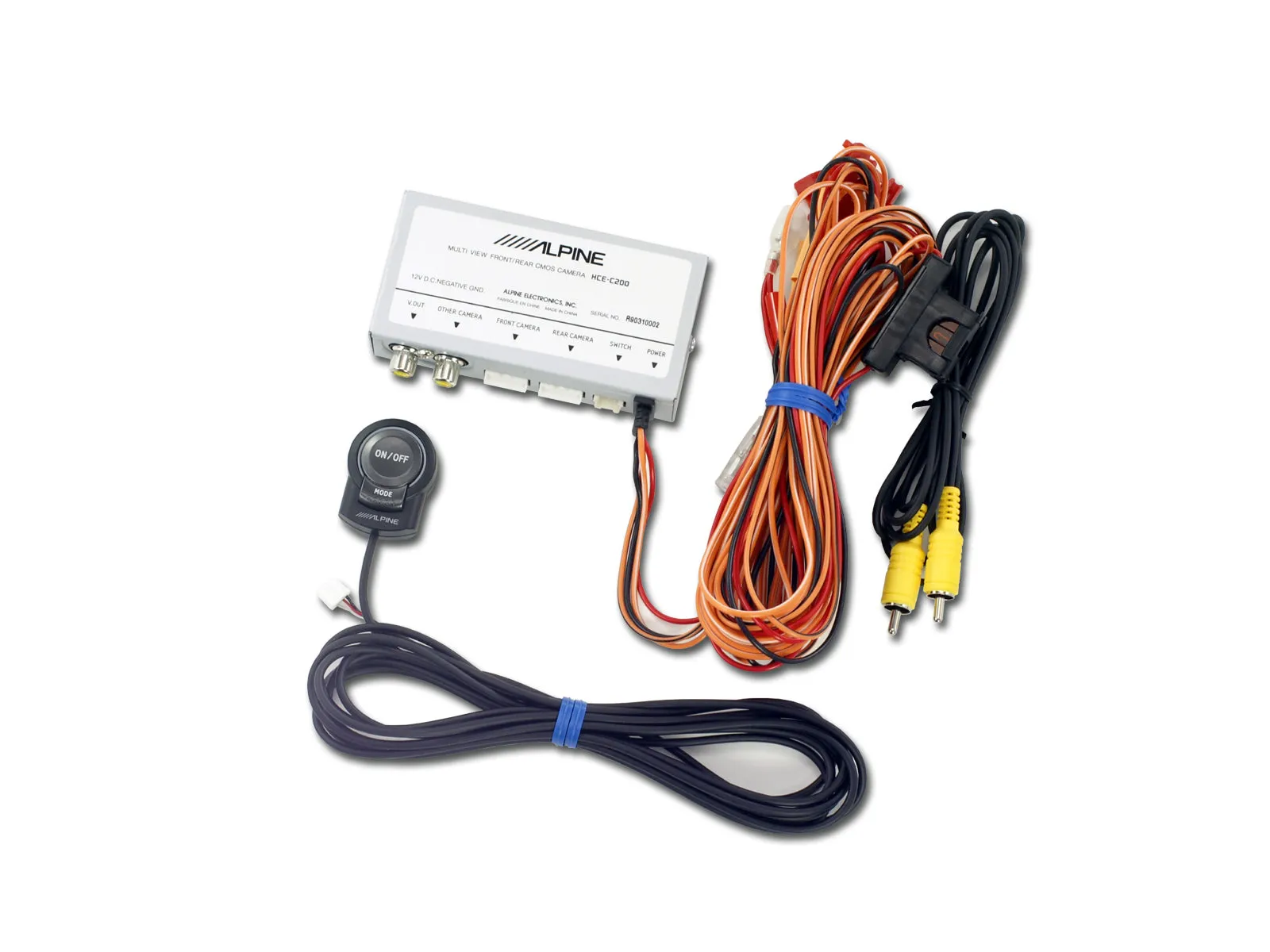

Dual Camera Interface Block
This unit allows you to connect two or more Multi-View cameras to the RCA input of the Device.
Features
General
- Camera accessory for direct connection camera and HCE-C257FD
- Enables connection of one or two Multi-View cameras to screens with RCA input
- Supports power supply for direct cameras
- Required if you want front and rear camera
- Includes camera view on / off of front camera and view mode select switch
Specifications
General
- Output Image: Normal image, CVBS (NTSC Video signal) 16: 9 Image output for wide-screen
- Image Output impedance: 75 Ohm (1Vp-p)
- Power Requirement: 12 V.DC
- Negative Ground
- Power Consumption: Less than 1.7W (12V)
- Operating Temperature: -30 ° C to 80 ° C
- Weight Power Section: 270g (including cable)
- Weight Switch Section: 50g (including cable)
Dimensions:
- Power Unit: 100 x 50 x 25mm
- Switch Section: 29 x 35.5 x 13.6 mm
- Power Unit Cable: 2m / 6m
- RCA Extension Cable: 2m
- Switch Cable: 3m
